SERIESLOCK™, A NEW INNOVATIVE QUICK DISCONNECT FITTING

CHANGING THE WAY YOU CONNECT.

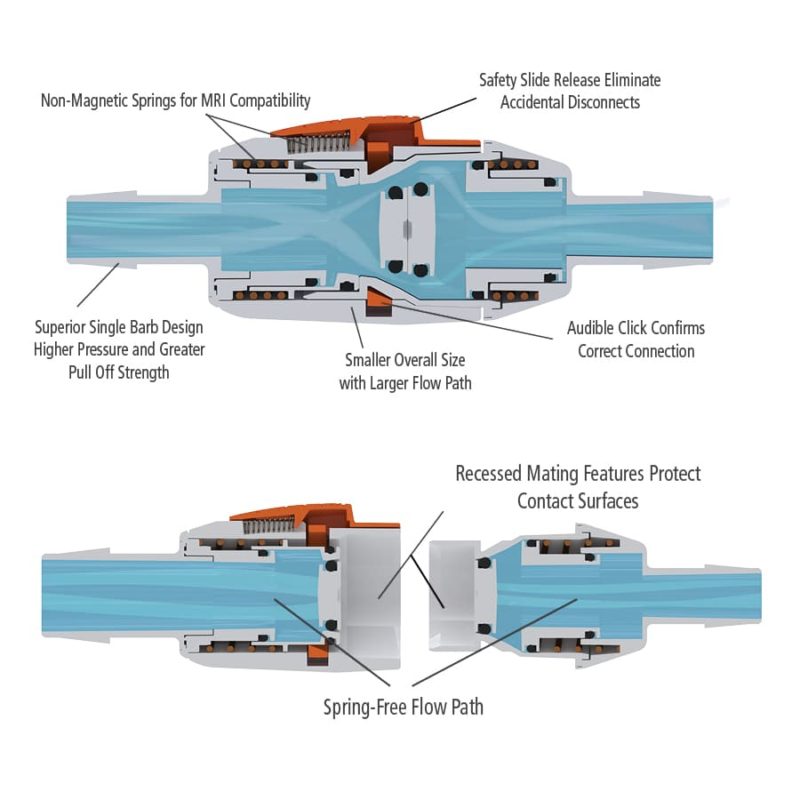

The unique Spring-Free Flow Path® quick disconnect coupler allows a larger volume of fluid to pass through it at lower line pressures. optimizing the flow, reducing restriction, turbulence, foaming, and bubbles.

Four body sizes are available to accommodate the application of 1/16” ID to 3/4” ID Tubing. Connection options: Barb, Panel Mount, Sanitary Flange, Port Plate/Bag Port, NPT Thread, and Micro-Connect.

SeriesLock was born from customer feedback. Customers asked for a product that could be disconnected easily with one hand while wearing gloves. They also wanted assurance that the product would not accidentally disconnect when dropped or bumped.

Adapter

SeriesLock adapter fittings allow for quick and easy connection of Eldon James PVC/BPA free tube/hose ends to almost any component  – threaded component solutions for the medical, food & beverage, and automotive industries. Three different body sizes are available in the Adapter Fittings to accommodate tubing sizes ranging from 1/8” ID to 3/4” ID. These adapters are available with National Pipe Threads (NPT).

SeriesLock 3d cad viewer

ADAPTER FITTINGS (DIMENSION IN INCHES)

Equivalent Tubing Size

Adapter Size

A

B

C

D

E

F

G

1/8″

NPT 1/8″

3.04

1.96

0.9

0.84

2.09

1.44

1.9

1.46

3/16″

NPT 1/8″

3.04

1.96

0.9

0.84

2.09

1.44

1.9

1.46

1/4″

NPT 1/4″

3.62

2.13

1.12

0.99

2.41

1.57

2.23

1.58

5/16″

NPT 1/4″

3.62

2.13

1.12

0.99

2.41

1.57

2.23

1.58

3/8″

NPT 1/4″

3.62

2.13

1.12

0.99

2.41

1.57

2.23

1.58

1/4″

NPT 3/8″

3.62

2.13

1.12

0.99

2.42

1.57

2.23

1.58

5/16″

NPT 3/8″

3.62

2.13

1.12

0.99

2.42

1.57

2.23

1.58

3/8″

NPT 3/8″

3.62

2.13

1.12

0.99

2.42

1.57

2.23

1.58

1/2″

NPT 1/2″

4.63

2.8

1.5

1.32

3.02

1.93

3

2.22

5/8″

NPT 1/2″

4.63

2.8

1.5

1.32

3.02

1.93

3

2.22

3/4″

NPT 1/2″

4.63

2.8

1.5

1.32

3.02

1.93

3

2.22

VALVED ASSEMBLY WEIGHTS (GR)

Equivalent Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

8

13

12

4

7

6

3/16″

8

13

12

4

7

6

1/4″

11

19

17

6

9

9

5/16″

11

19

17

6

9

9

3/8″

11

19

17

6

9

9

1/2″

27

45

41

15

27

23

5/8″

27

45

41

15

27

23

3/4″

27

45

41

15

27

23

OPEN ASSEMBLY WEIGHTS (GR)

Equivalent Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

8

13

12

2

4

3

3/16″

8

13

12

2

4

3

1/4″

10

18

16

3

6

4

5/16″

10

18

16

3

6

4

3/8″

10

18

16

3

6

4

1/2″

24

42

37

9

18

14

5/8″

24

42

37

9

18

14

3/4″

24

42

37

9

18

14

Barbs

Eldon James features industry-leading barbed quick disconnects that are perfect for conjoining tubes of any kind. Safe for use in medical practices, our couplings feature innovative single barb technology to stay firmly entrenched in the tubing. Three body sizes are currently available with Barb Fittings to accommodate tubing sizes ranging from 1/4” ID to 3/4” ID. See Micro-Connect for smaller barb sizes.

SeriesLock 3d cad viewer

BARB FITTINGS (DIMENSION IN INCHES)

Tubing Size

A

B

C

D

E

F

G

H

1/8″

2.6

1.8

0.9

0.84

1.85

1.44

1.7

1.3

3/16″

3

1.8

0.9

0.84

2.05

1.44

1.9

1.3

1/4″

3.46

1.98

1.12

0.99

2.3

1.56

2.29

1.45

3/8″

3.66

1.98

1.12

0.99

2.4

1.56

2.29

1.45

1/2″

4.58

2.57

1.5

1.32

2.93

1.93

2.9

1.9

3/4″

4.97

2.57

1.5

1.32

3.13

1.93

3.1

1.9

VALVED ASSEMBLY WEIGHTS (GR)

Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

7

12

11

4

6

6

3/16″

8

13

12

4

7

6

1/4″

11

18

17

6

9

9

3/8″

11

19

17

6

9

9

1/2″

25

42

38

15

25

22

3/4″

27

45

41

15

27

23

OPEN ASSEMBLY WEIGHTS (GR)

Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

7

12

11

2

4

3

3/16″

8

13

12

2

4

3

1/4″

10

17

15

3

5

4

3/8″

10

18

16

3

6

4

1/2″

22

39

34

9

18

14

3/4″

24

42

37

9

18

14

Micro-Connect

The Micro-Connect barbed quick disconnects offer a smaller solution from the standard SeriesLock barb fittings. Our disconnects feature innovative single barb technology to stay firmly entrenched in the tubing. Micro-Connects can accommodate tubing sizes ranging from 1/16” ID to 1/4” ID.

SeriesLock 3d cad viewer

BARB FITTINGS (DIMENSION IN INCHES)

Tubing Size

A

B

C

D

E

F

G

H

1/16″

1.33

0.92

0.57

0.52

1.12

0.92

1.07

0.87

1/8″

1.73

0.92

0.57

0.52

1.32

0.92

1.27

0.87

3/16″

2.13

0.92

0.57

0.52

1.52

0.92

1.47

0.87

1/4″

2.23

0.92

0.57

0.52

1.57

0.92

1.52

0.87

OPEN ASSEMBLY WEIGHTS (GR)

Tubing Size

Female Assembly

Male Assembly

PP

PVDF

PP

PVDF

1/16″

1.5

2.9

0.8

1.6

1/8″

1.6

3.1

0.8

1.7

3/16″

1.8

3.5

1

2

1/4″

1.8

3.5

1

2

Panel Mount

Threaded UNEF panel mount adapter fittings allow for quick and easy connection of Eldon James PVC-free tube/hose ends to almost any component. Threaded component solutions for the medical, food & beverage, and automotive industries. Three different body sizes are available to accommodate tubing sizes ranging from 1/8” ID to 3/4” ID.

SeriesLock 3d cad viewer

PANEL MOUNT FITTINGS (DIMENSION IN INCHES)

Tubing Size

A

B

C

D

E

F

1/8"

2.04

1.14

0.50

0.97

0.87

0.69

3/16″

2.24

1.14

0.50

0.97

0.87

0.69

1/4″

2.68

1.45

0.50

1.05

1.00

0.69

5/16"

2.73

1.45

0.50

1.05

1.00

0.69

3/8″

2.78

1.45

0.50

1.05

1.00

0.69

1/2″

3.38

1.87

0.50

1.27

1.37

1.00

5/8"

3.48

1.87

0.50

1.27

1.37

1.00

3/4″

3.58

1.87

0.50

1.27

1.37

1.00

PANEL MOUNT ASSEMBLY WEIGHTS (GR)

Tubing Size

Valved Assembly

Open Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

6

8

7

4

7

6

3/16″

6

8

7

4

7

6

1/4″

9

13

12

6

12

11

5/16″

9

13

12

6

12

11

3/8″

10

14

13

6

12

11

1/2″

20

24

22

14

20

16

5/8″

20

24

22

14

20

16

3/4″

21

25

23

15

21

14

Port Plate

Port plates also known as bag ports are designed to be ultrasonic or thermal welded to single-use medical and bio-reactor bags of like material. SeriesLock valved Port Plates offer an easy connect/disconnect solution used when transferring drug compounds, cell culture, and fermentation as well as other media and fluids in the biopharmaceutical industry. Available in a single-use E8402 and flexible PVDF materials. Three body sizes are available to accommodate barb sizes ranging from 1/8” ID to 3/4” ID Tubing.

SeriesLock 3d cad viewer

PORT PLATE FITTINGS (DIMENSION IN INCHES)

Tubing Size

A

B

C

D

1/8″

1.32

0.36

0.12

1.75

3/16″

1.32

0.36

0.12

1.75

1/4″

1.45

0.40

0.12

1.75

5/16"

1.45

0.40

0.12

1.75

3/8″

1.45

0.40

0.12

1.75

1/2″

1.84

0.56

0.12

2.25

5/8"

1.84

0.56

0.12

2.25

3/4″

1.84

0.56

0.12

2.25

PORT PLATE ASSEMBLY WEIGHTS (GR)

Tubing Size

Valved Assembly

Open Assembly

PP

PVDF

PP

PVDF

1/8″

9

13

6

12

3/16″

9

13

6

12

1/4″

10

14

6

12

5/16″

10

14

6

12

3/8″

10

14

6

12

1/2″

21

25

15

21

5/8″

21

25

15

21

3/4″

21

25

15

21

Sanitary Flange

Sanitary Flange fittings are suitable for use in single-use pharmaceutical, biotech, beverage, dairy, food, and other industries when sanitary product flow is important. Three Sanitary Flange body sizes are available to accommodate tube sizes ranging from 1/8” ID to 3/4” ID.

SeriesLock 3d cad viewer
0.75" Sanitary Flange Specifications

0.75" SANITARY FLANGE FITTINGS (in)

Tubing Size

A

B

C

D

E

F

G

H

1/8″

2.11

1.33

3/16″

2.11

1.33

1/4″

3.90

1.92

1.12

0.99

2.57

1.57

2.37

1.43

5/16"

3.90

1.92

1.12

0.99

2.57

1.57

2.37

1.43

3/8″

3.90

1.92

1.12

0.99

2.57

1.57

2.37

1.43

1/2″

4.58

2.56

1.50

1.32

2.93

1.93

2.90

1.88

5/8"

4.58

2.56

1.50

1.32

2.93

1.93

2.90

1.88

3/4″

4.58

2.56

1.50

1.32

2.93

1.93

2.90

1.88

0.75" SANITARY FLANGE VALVED ASSEMBLY WEIGHTS (gr)

Equivalent Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

6

8

7

3/16″

6

8

7

1/4″

11

18

17

9

13

12

5/16″

11

18

17

9

13

12

3/8″

11

19

17

10

14

13

1/2″

25

42

38

20

24

22

5/8″

25

42

38

20

24

22

3/4″

27

45

38

20

24

22

0.75" SANITARY FLANGE OPEN ASSEMBLY WEIGHTS (gr)

Equivalent Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/8″

4

7

6

3/16″

4

7

6

1/4″

10

17

15

6

12

11

5/16″

10

17

15

6

12

11

3/8″

10

18

16

6

12

11

1/2″

22

39

34

14

20

16

5/8″

22

39

34

14

20

16

3/4″

24

39

34

14

20

16

1.5" Sanitary Flange Specifications

1.5" SANITARY FLANGE FITTINGS (in)

Tubing Size

A

B

C

D

E

F

G

H

1/2″

4.58

2.56

1.50

1.32

2.93

1.93

2.90

1.88

5/8"

4.58

2.56

1.50

1.32

2.93

1.93

2.90

1.88

3/4″

4.58

2.56

1.50

1.32

2.93

1.93

2.90

1.88

1.5" SANITARY FLANGE VALVED ASSEMBLY WEIGHTS (gr)

Equivalent Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/2″

31

53

48

26

32

29

5/8″

31

53

48

26

32

29

3/4″

31

53

48

26

32

29

1.5" SANITARY FLANGE OPEN ASSEMBLY WEIGHTS (gr)

Equivalent Tubing Size

Female Assembly

Male Assembly

PP

PVDF

GFBN

PP

PVDF

GFBN

1/2″

28

50

44

20

29

23

5/8″

28

50

44

20

29

23

3/4″

28

50

44

20

29

23

Caps & Plugs

Caps and plugs are an ideal way to keep your disconnected fittings flow path freer from debris. The SeriesLock caps fit all of our standard male housings, while the plugs fit all of our standard female housings.

Cap Dimensions and Weights

CAP DIMENSIONS (in) AND WEIGHTS (gr)

Equivalent Tubing Size

Cap Dimensions

Cap Weights

A

B

C

1/8″

1.29

0.25

0.64

1.1

3/16″

1.29

0.25

0.64

1.1

1/4″

1.30

0.25

0.76

1.4

5/16″

1.30

0.25

0.76

1.4

3/8″

1.30

0.25

0.76

1.4

1/2″

25

0.25

1.06

2.2

5/8″

25

0.25

1.06

2.2

3/4″

27

0.25

1.06

2.2

Plug Dimensions and Weights

PLUG DIMENSIONS (in) AND WEIGHTS (gr)

Equivalent Tubing Size

Plug Dimensions

Plug Weights

A

B

C

1/8″

1.31

0.25

0.79

1.4

3/16″

1.31

0.25

0.79

1.4

1/4″

1.30

0.25

0.79

1.7

5/16″

1.30

0.25

0.79

1.7

3/8″

1.30

0.25

0.79

1.7

1/2″

25

0.25

1.25

2.9

5/8″

25

0.25

1.25

2.9

3/4″

27

0.25

1.25

2.9

PRODUCT FEATURES

  • Spring-Free Flow Path®
    • Male Valved Assemblies with Vented Spring
    • Chamber Eliminating Fluid Cross-over
  • Valved and Non-Valved (Open) Options
  • Disconnect with No Spills *
  • Superior Single Barb Design
  • Overall Smaller Size Compared to Like Couplers
  • USP Class VI / ISO10993 Compliant Materials
  • Safety Slide Release Minimizing Accidental Disconnects
  • Audible Click Confirms Correct Connection
  • Can be Sterilized
  • Non-Magnetic Spring Options Available

* See brochure for spillage at rated pressures according to housing size and starilization methods.

COMPONENT SPECIFICATIONS

CONNECTIONS:

1/16” to 3/4” Tubing

MATERIALS:

Main Body Components:

  • Polypropylene (PP)
  • Polyvinylidene fluoride (PVDF)
  • Glass Filled Black Nylon (GFBN)
  • Polysulfone (PS)
  • Acetal (AC)

Slide Button / Main Latch:

  • Makrolon®

Springs:

  • Stainless
  • Non-Magnetic Option

Slide Button / Main Latch Color:

  • Orange
  • Blue – special order
  • Red – special order
  • Natural – special order

Seals:

  • Buna-N
  • EPDM Option
  • Silicone  Option
  • Viton Option
  • Non-Lube (Silicone Only)

LUBRICANTS:

  • PFPE (biocompatible, inert)

WORKING PRESSURE:

  • (100 Series) Vacuum to 90psi, 6.2 bar
  • (200 Series) Vacuum to 60psi, 4.1 bar

TEMPERATURE (CONTINUOUS) :

  • PP: 32°F to 160°F (0°C to 71°C)
  • PS: -40°F to 282°F (-40°C to 139°C)
  • PVDF: 32°F to 250°F (0°C to 121°C)
  • GFBN: 32°F to 282°F (0°C to 139°C)
  • AC: 32°F to 180°F (0°C to 82°C)

SPILLAGE (AT RATED PRESSURES) :

  • Small Housing (1/8” to 3/16” Tubing)
    <0.05cc per disconnect
  • Medium Housing (1/4” to 3/8” Tubing)
    <0.05cc per disconnect
  • Large Housing (1/2” to 3/4” Tubing)
    <0.10cc per disconnect
  • Micro Housing (1/16” to 1/4” Tubing)
    <0.05cc per disconnect
REQUEST FOR QUOTE
CLICK HERE FOR BROCHURE
